IP Network Emulation
Simena's IP Network Emulator emulates real transmission conditions of the IP or Internet network, such as latency, transmission bandwidth, packet loss, jitter, etc. Network Emulator is required for equipment manufacturers, operators and network integrators at the laboratory tests of the telecommunication equipment and networks as well at the test of quality parameters (QoS) of the telecommunication services.
It emulates these network conditions at Ethernet layer by capturing and processing the data packets transparently for network users without any configuration change on the networks or servers. Emulator is transparent for all protocols as for example IP, IPX, AppleTalk, TCP, HTTP, VoIP and others.

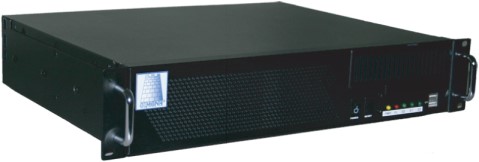

Network Emulator is offered in three versions: NE100, NE1000 and NE2000.
Feature | NE100 | NE1000 | NE2000 |
---|---|---|---|
Bandwidth throttling | ja | ja | ja |
Layer 2 emulations | ja | ja | ja |
Bi-directional emulations | ja | ja | ja |
Unidirectional emulations | ja | ja | ja |
IP packet filters (IP, TCP, UDP) | ja | ja | ja |
Per port real-time packet decoding with filters | ja | ja | ja |
Per port real-time throughput graphs | ja | ja | ja |
Web based user interface | ja | ja | ja |
Complete remote management | ja | ja | ja |
10/100/1000 Ethernet interfaces | ja | ja | ja |
Rack mountable | ja | ja | ja |
Simultaneous emulations | 4 | 32 | |
Unidirectional simultaneous emulations | 8 | 64 | |
DiffServ emulation | ja | ja | |
Ethernet packet filters | ja | ja | |
Extended packet buffering | ja | ja | |
Bit Error Rate (BER) emulation | ja | ja | |
Jumbo frames | ja | ||
Fragmentation for jumbo frames | ja | ||
VLAN emulation | ja | ||
IPV6 emulation | ja | ||
Custom packet filters | ja | ||
Packet modifications | ja | ||
Custom packet modifications | ja | ||
Fiber optic gigabit interfaces | ja | ||
Command line interface (CLI) | ja | ||
Custom latency and packet loss distributions | ja |
